PC Mod Illustrated Part III -
The Lian Li case

Click on the Thumbnails to view larger image
All Photos Copyright (C) 2003 Tim Ward. These pictures are not public domain. You may not use them without permisssion

I was building a new PC. We started by picking out a black Lian Li aluminum case.
MB CPU Fan Grill Cut

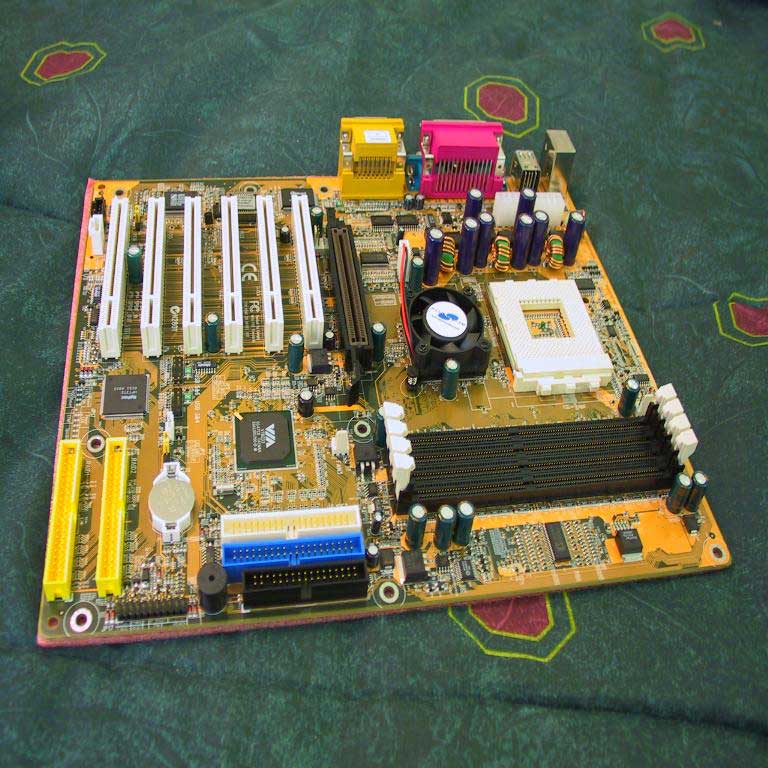

This was the original motherboard.
It's been replaced since.

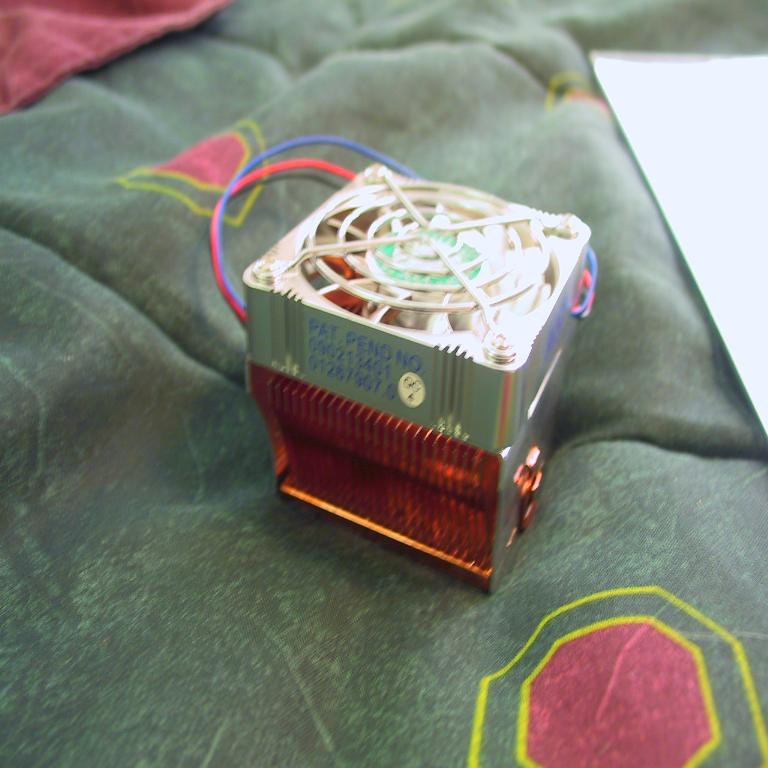

Chrome & Copper - Would also look
good on a motorbike.

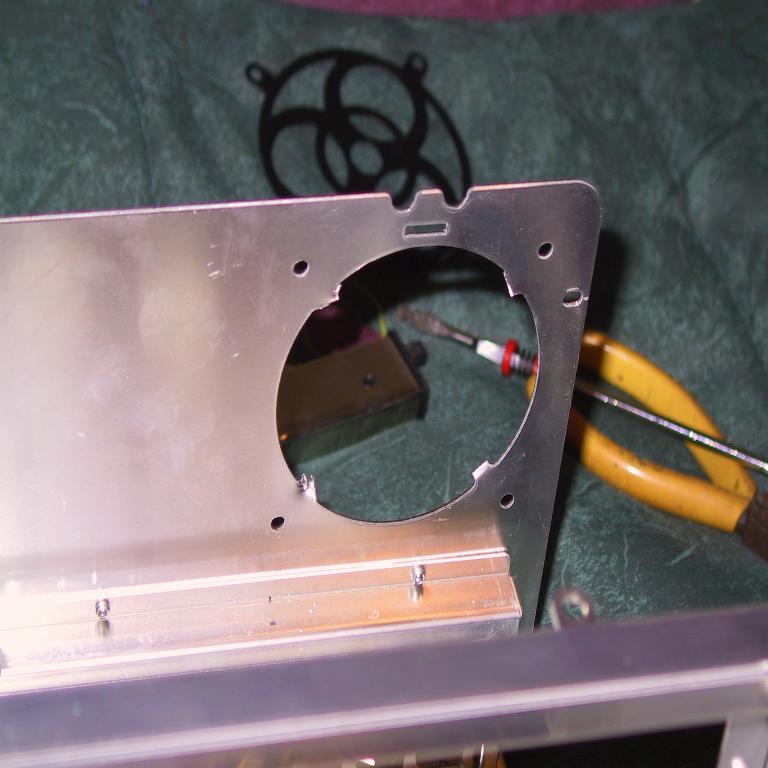

The standard rear fan grill had to go.

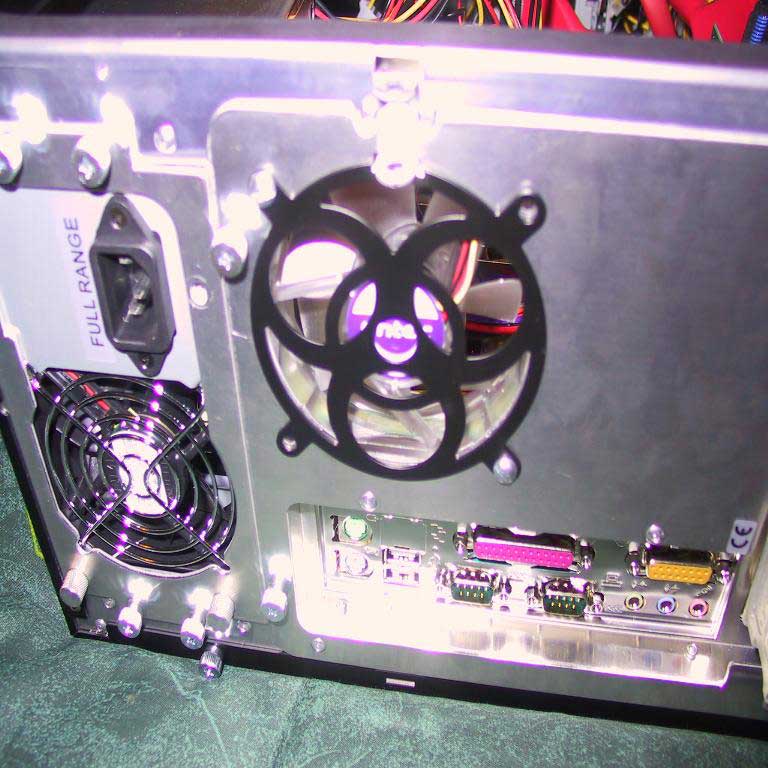

New Grille Connect cables More wires
With the new fan cover. Connect some cables. More Wires. The black capsule thing
is a temp sensor. The blue box keeps
the CPU fan going after power-down.
4 Hard Drives

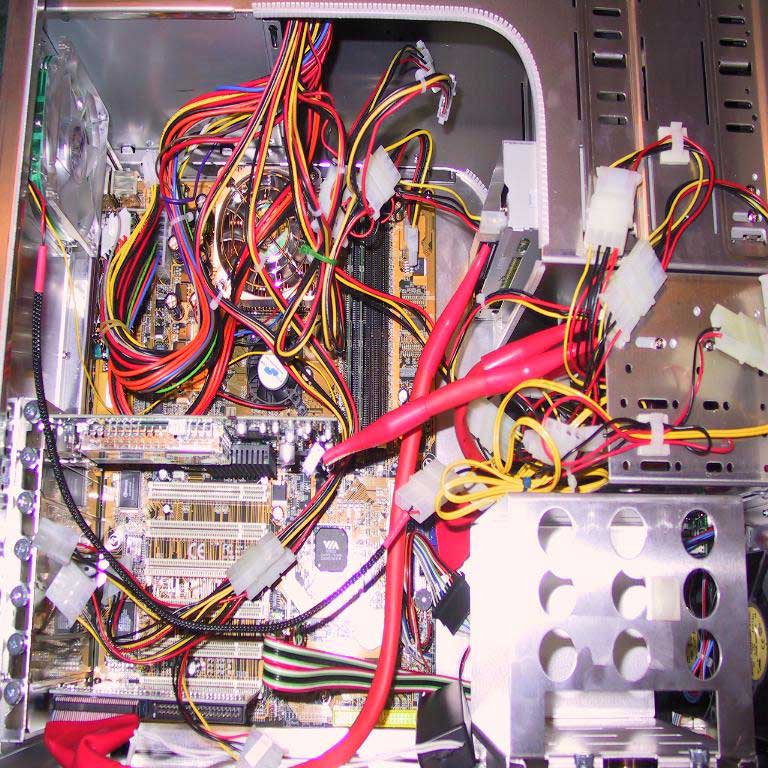

Wires detail Afix EL cable. Afix badge

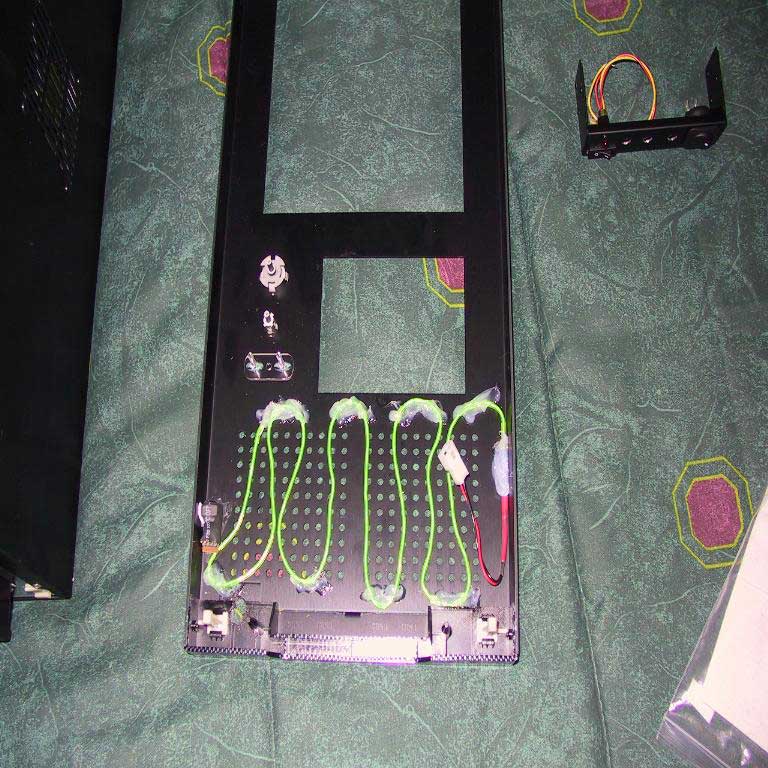

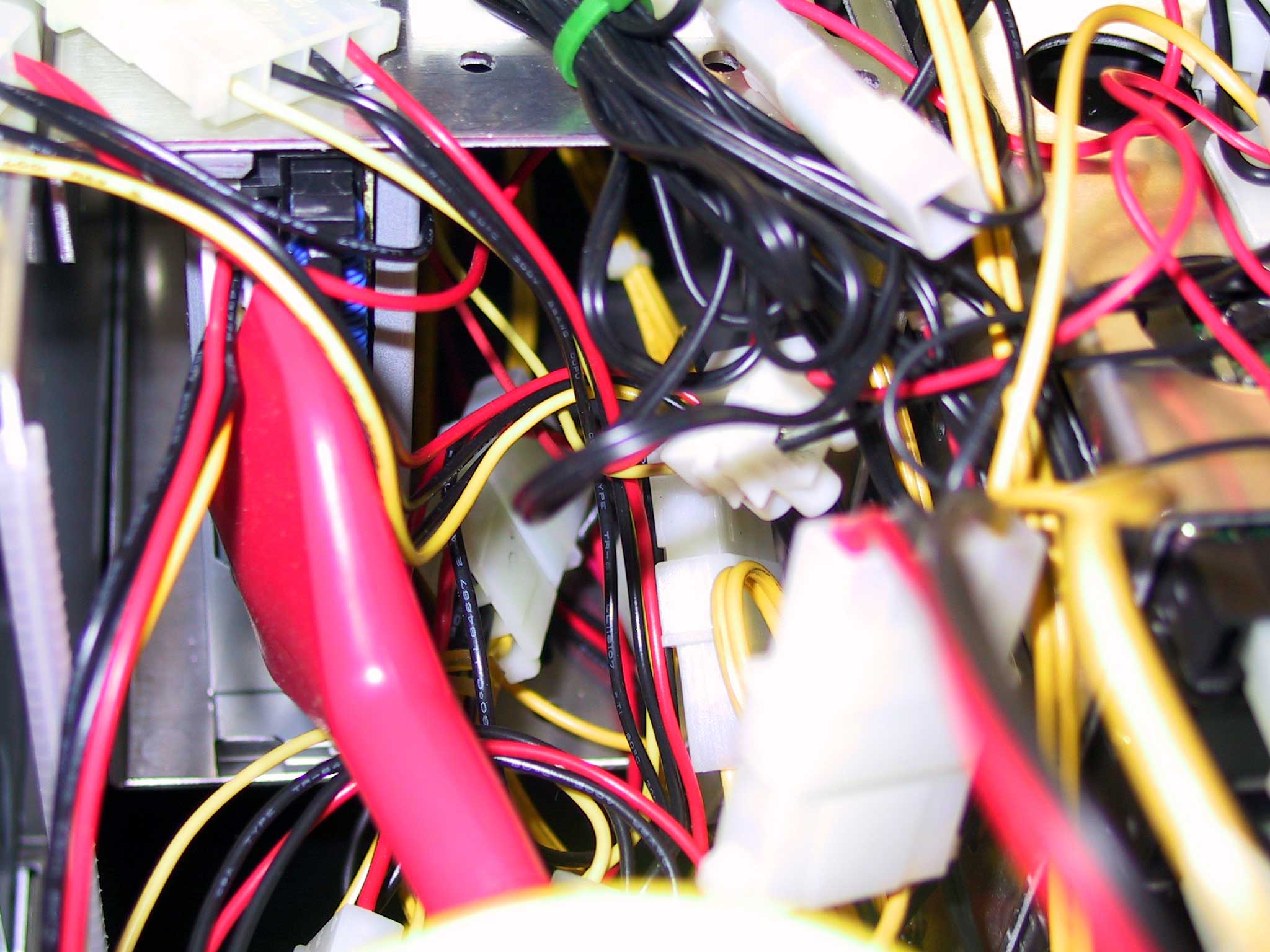

Details of wiring. Afix Electro-Luminescent cable. Remove case badge.
Drill hole
Afix E.L. badge kit.
Outside Power, E.L. cable E.L. cable & badge

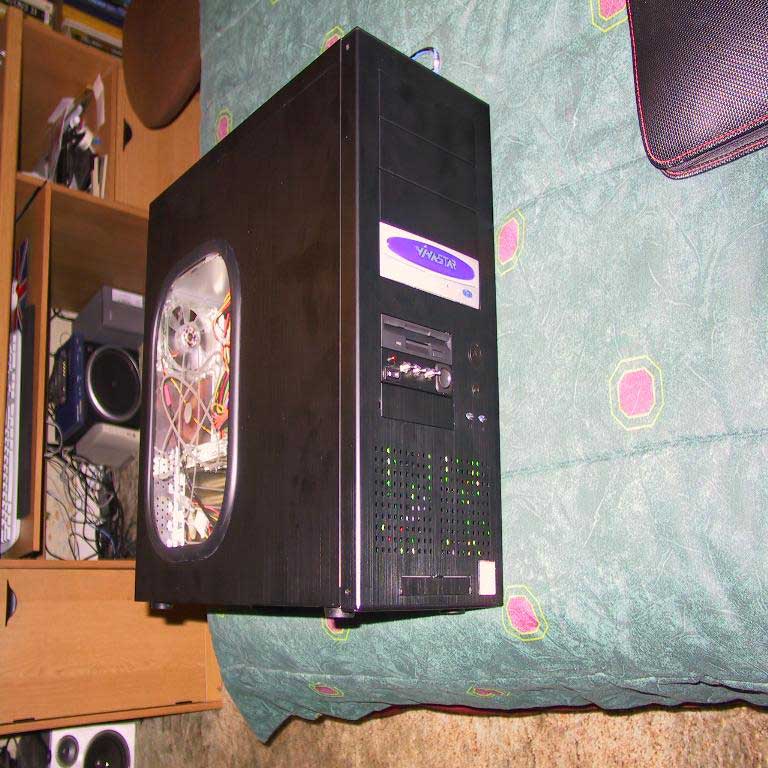

Outside case, switches & floppy.
DVD-R burner.
No DVD or CD-R/RW yet.

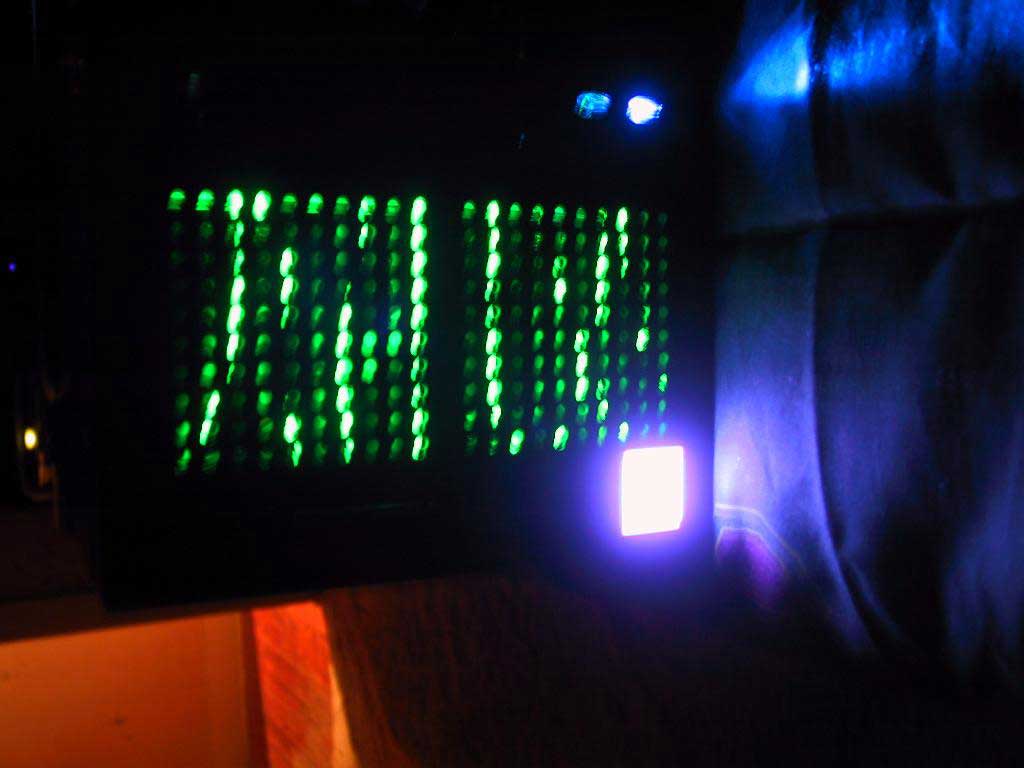

Power light & EL cable.

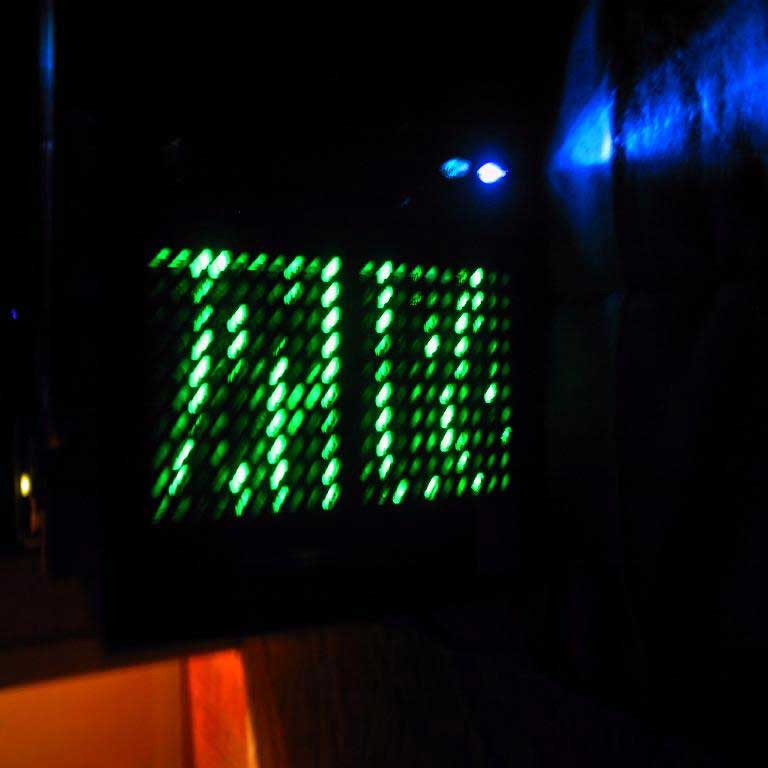

What does it spell?

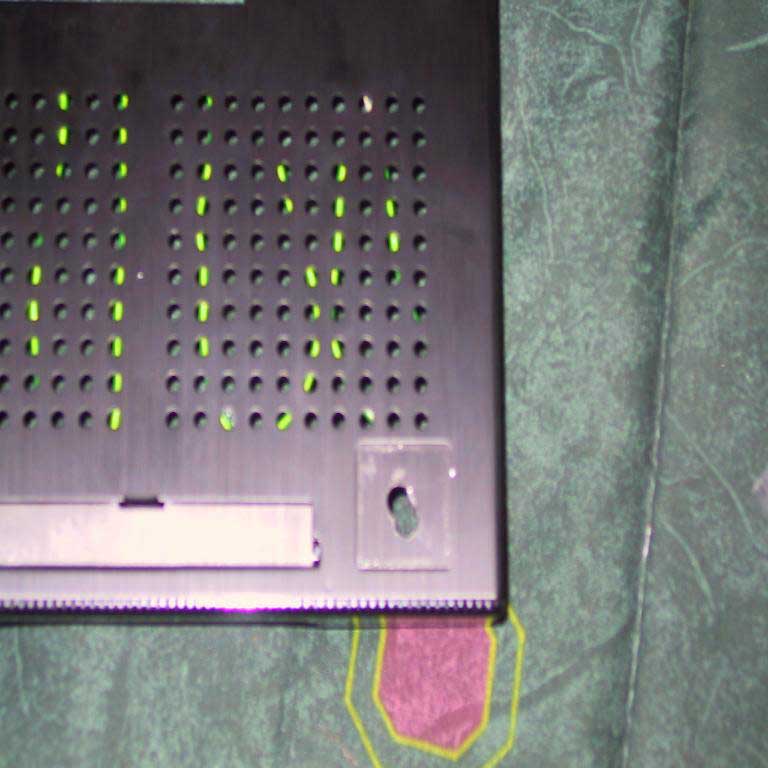

E.L. Cable & E.L. badge
Side, large red light Side, in desk, UV Light Side, in desk, fan only

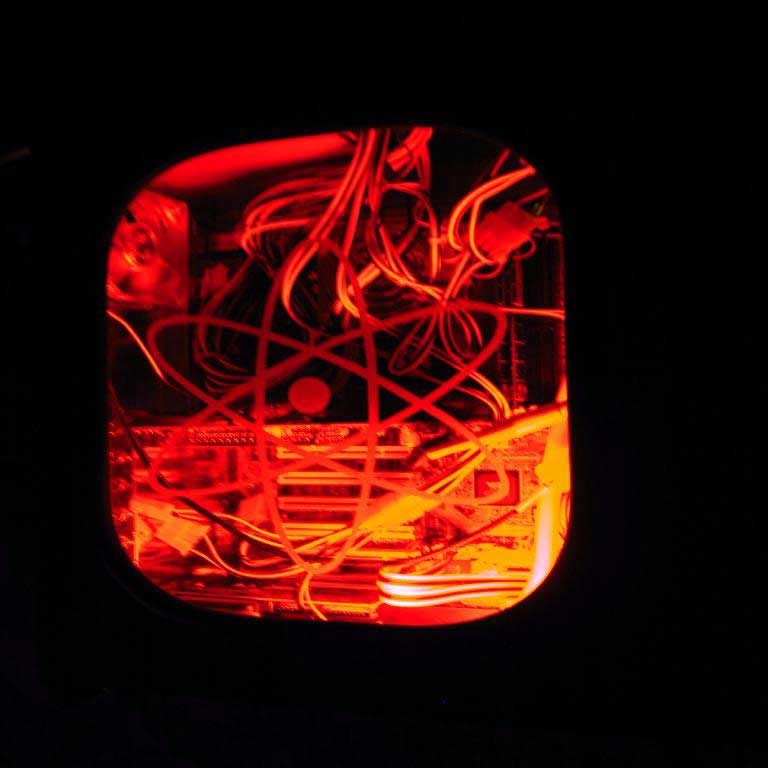

Side view, long red
cold-catheter light only

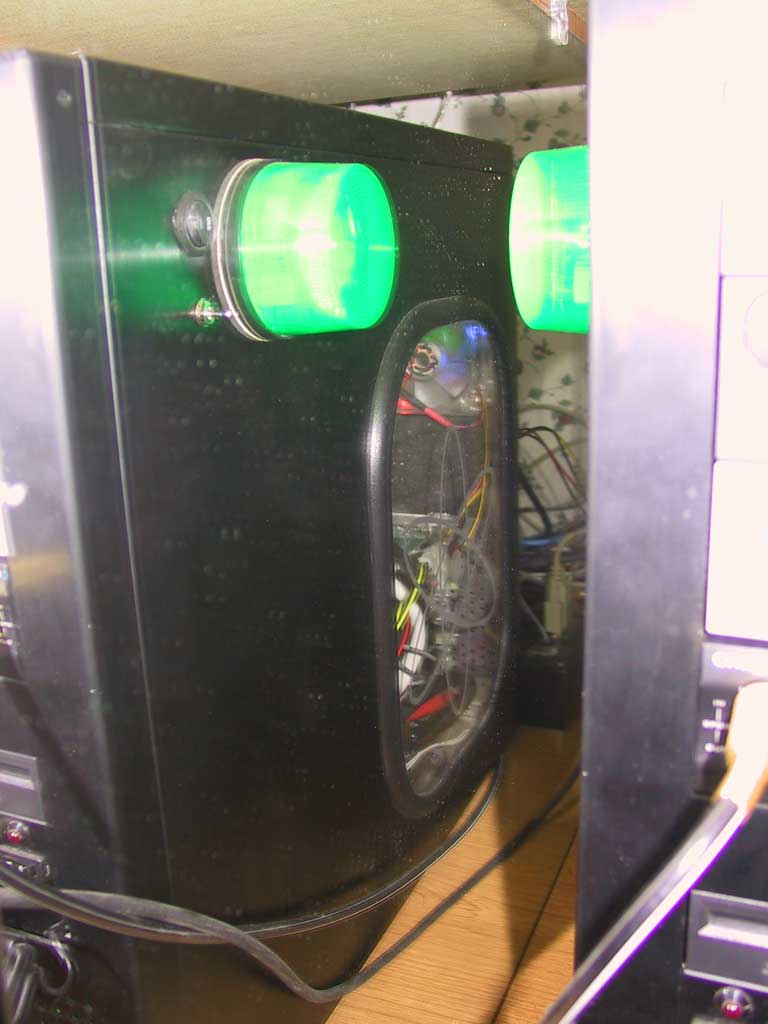

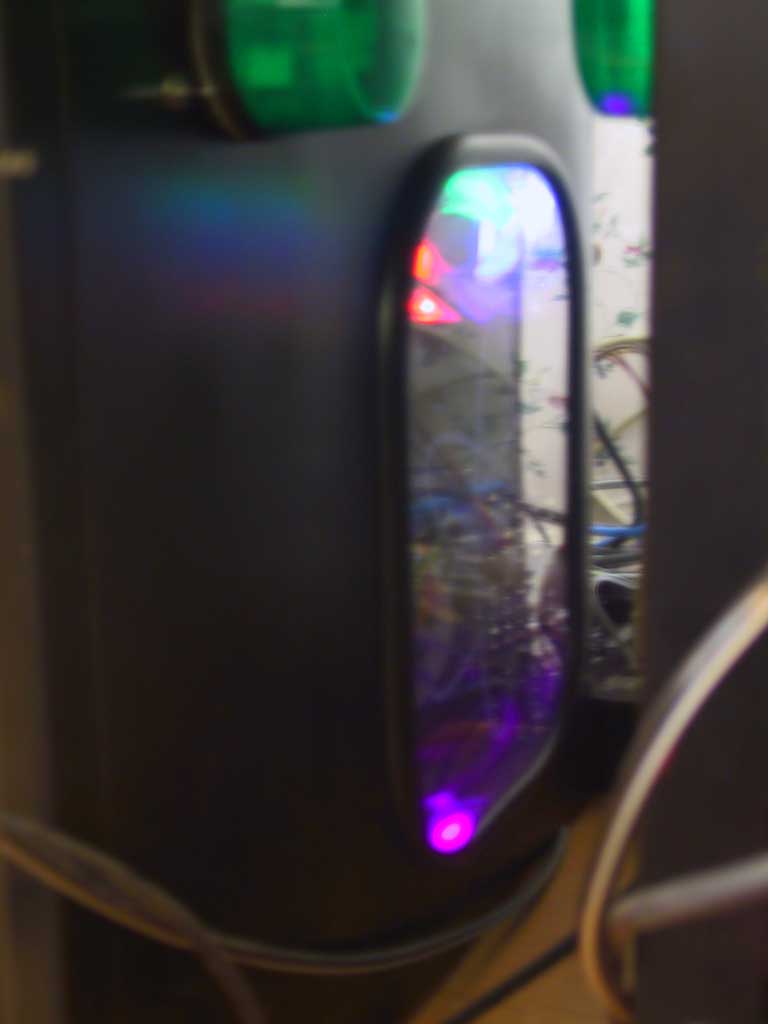

Side view (mirror), in desk
UV Light & tr-color fan light
Side view (mirror), in desk
Fan only. Yes, that is a
green strobe on the side
Front, in desk, no Light Wiring under desk

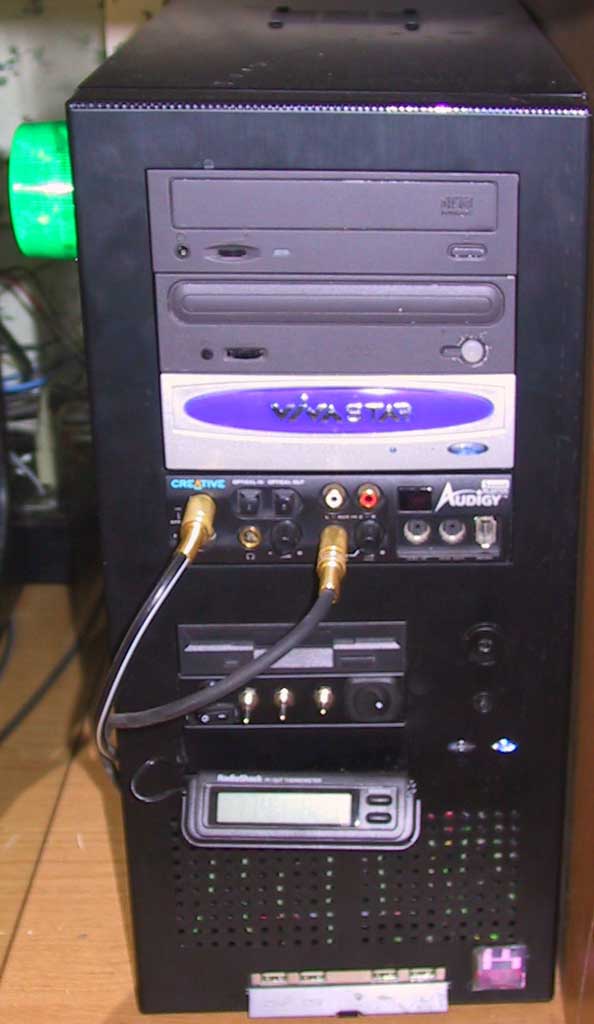

Front view, in desk
Digital Thermometer.
Top blowhole just visible

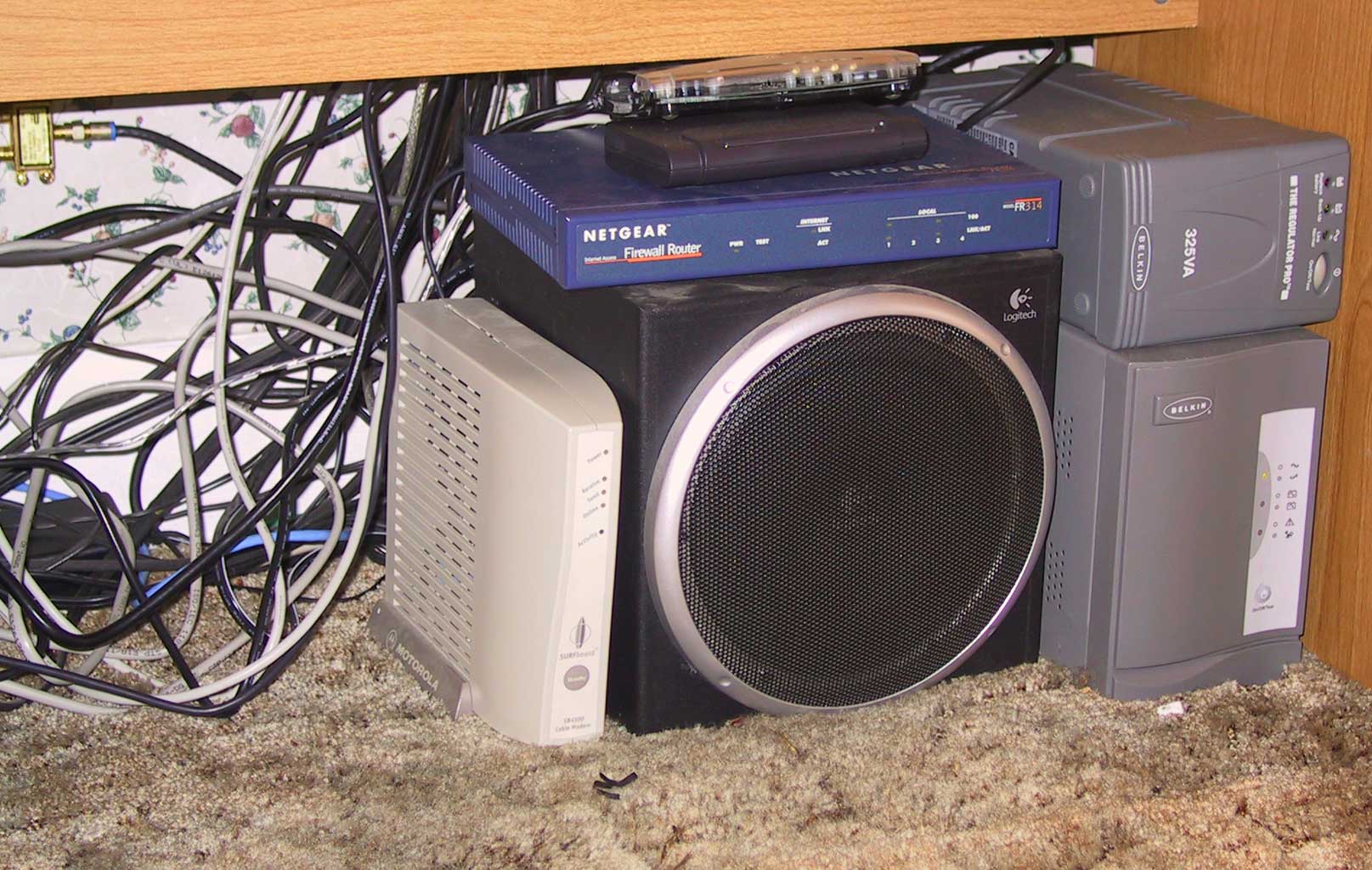

Wiring under desk.
Two UPS, two USB Hubs,
Firewall, cable modem
