PC Mod Illustrated Part V -
Alien Artefact Monitor Stand/Fan pack



Click on the Thumbnails to view larger image
All Photos Copyright (C) 2004 Tim Ward. These pictures are not public domain. You may not use them without permisssion


March 2004
Cardboard box electrical box electrical box
I needed to bring my 14' monitor
up to the same height as the other

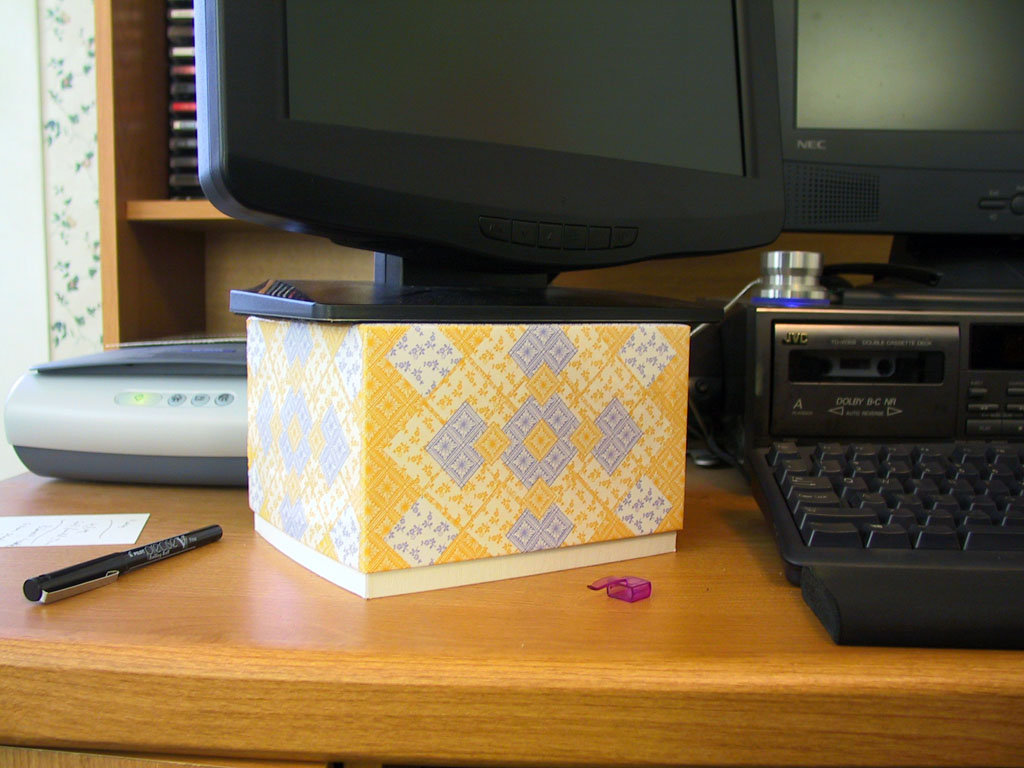

I tried a cardboard box,
but it doesn't match

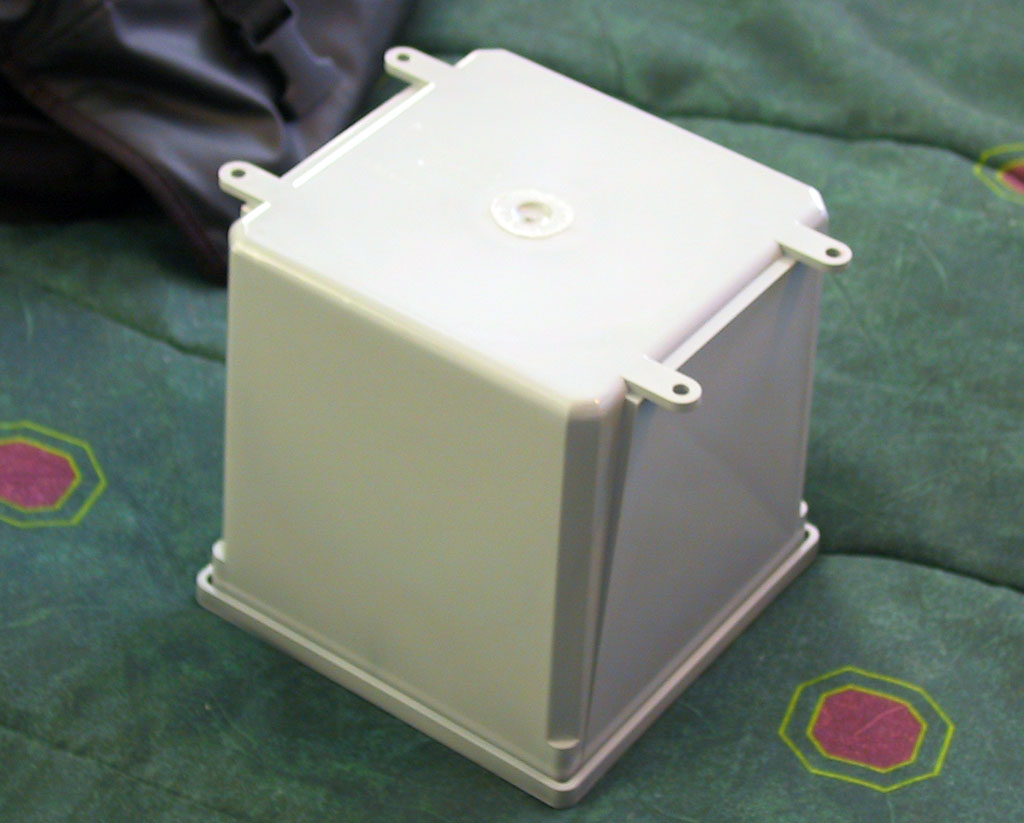

So, off to Home Depot where
I found an electrical box
like this

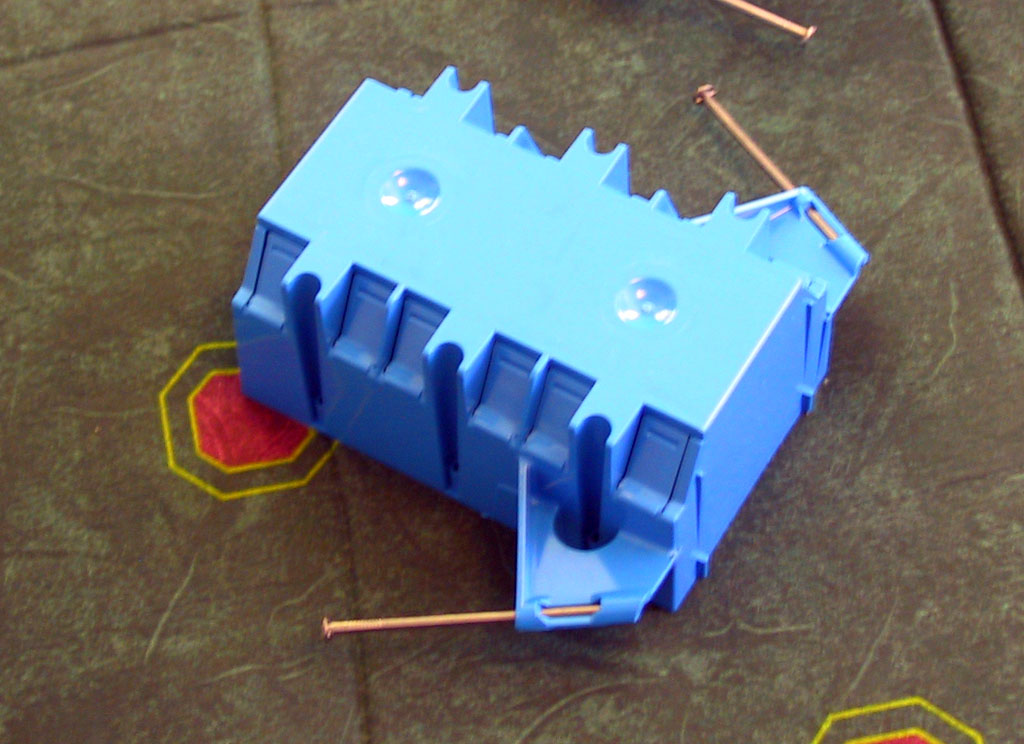

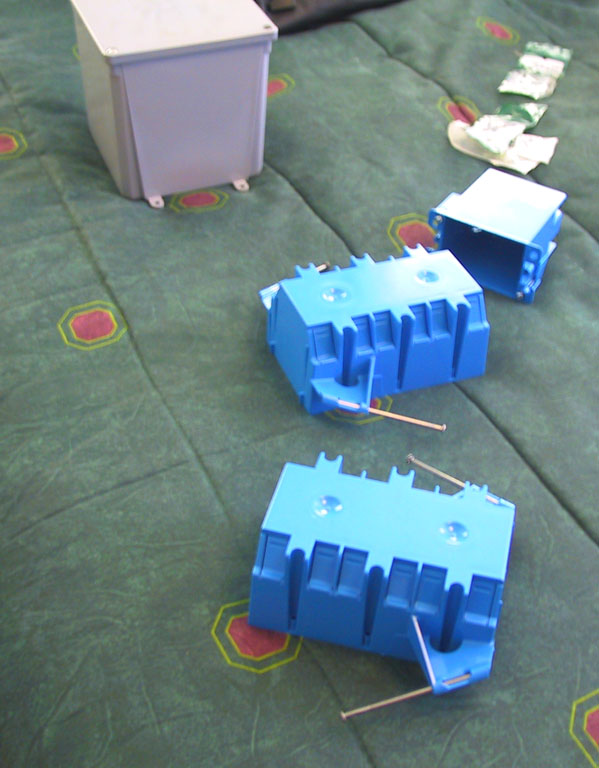

And a couple of these
Size comparison Finished stand Side view

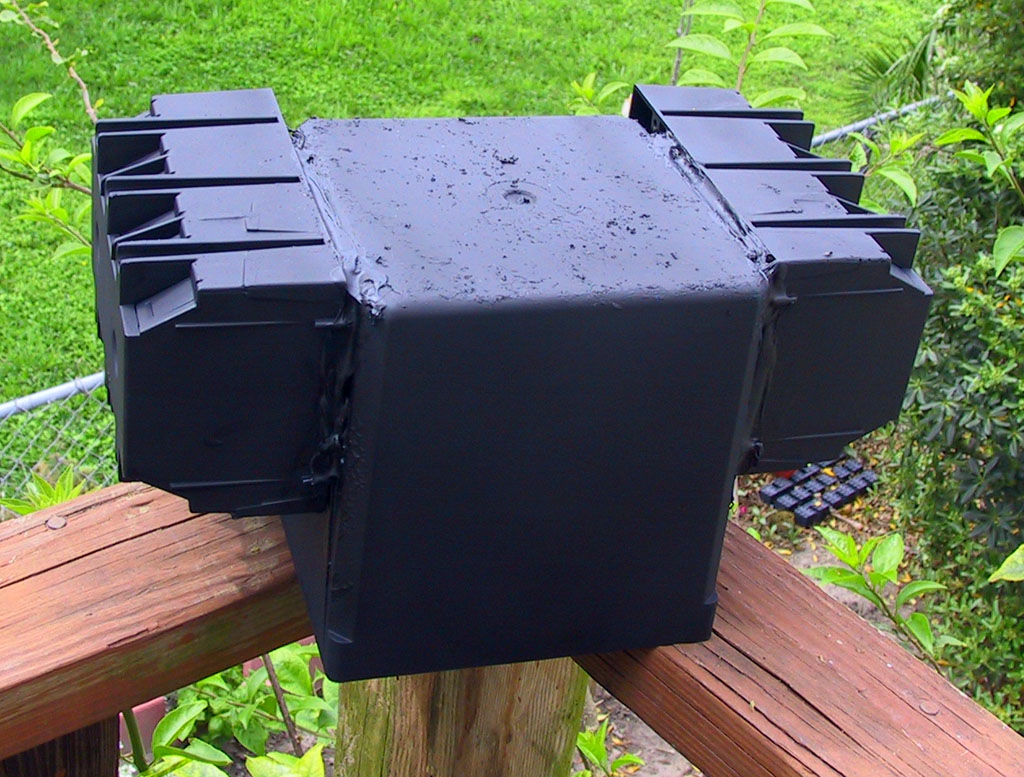

Here they are to compare the size After cutting, sanding, painting,
gluing, and more painting

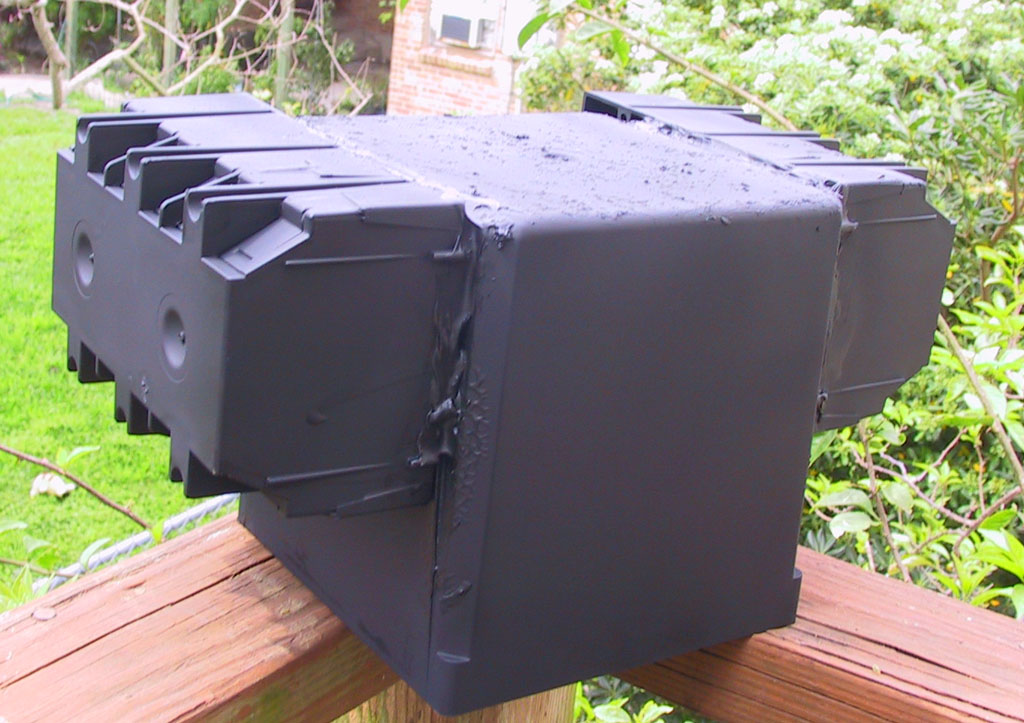

A side view
I just liked the way the
two blue boxes looked like
some alien device
Extra texture In use

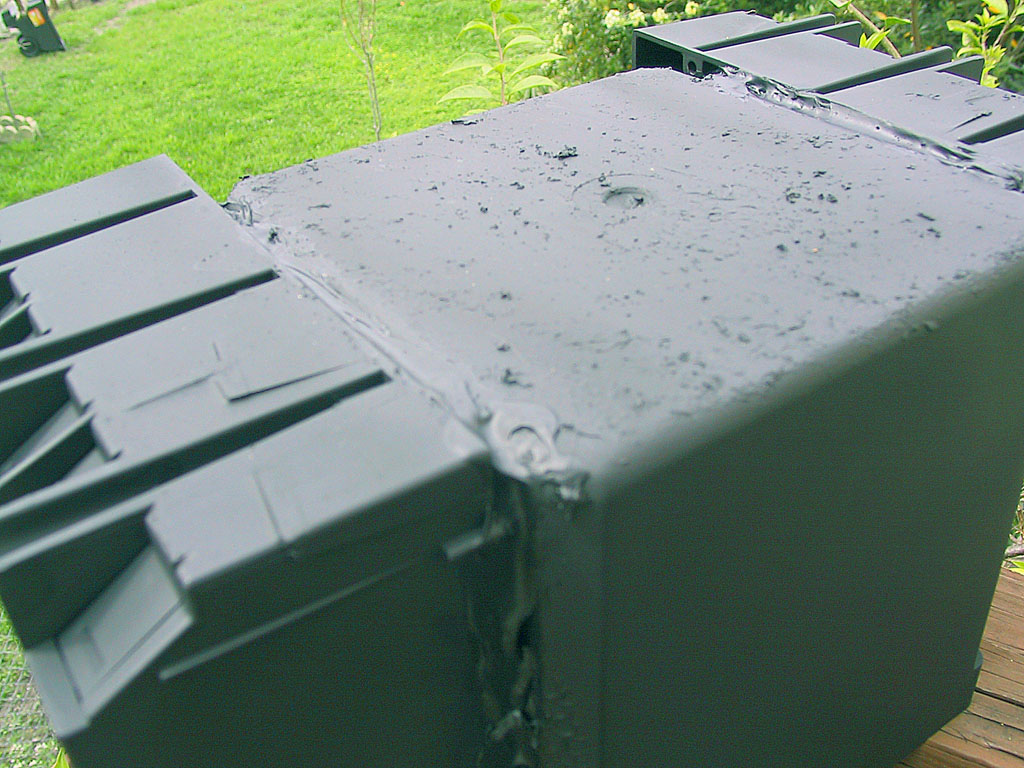

A bit more texture than
I had hoped for

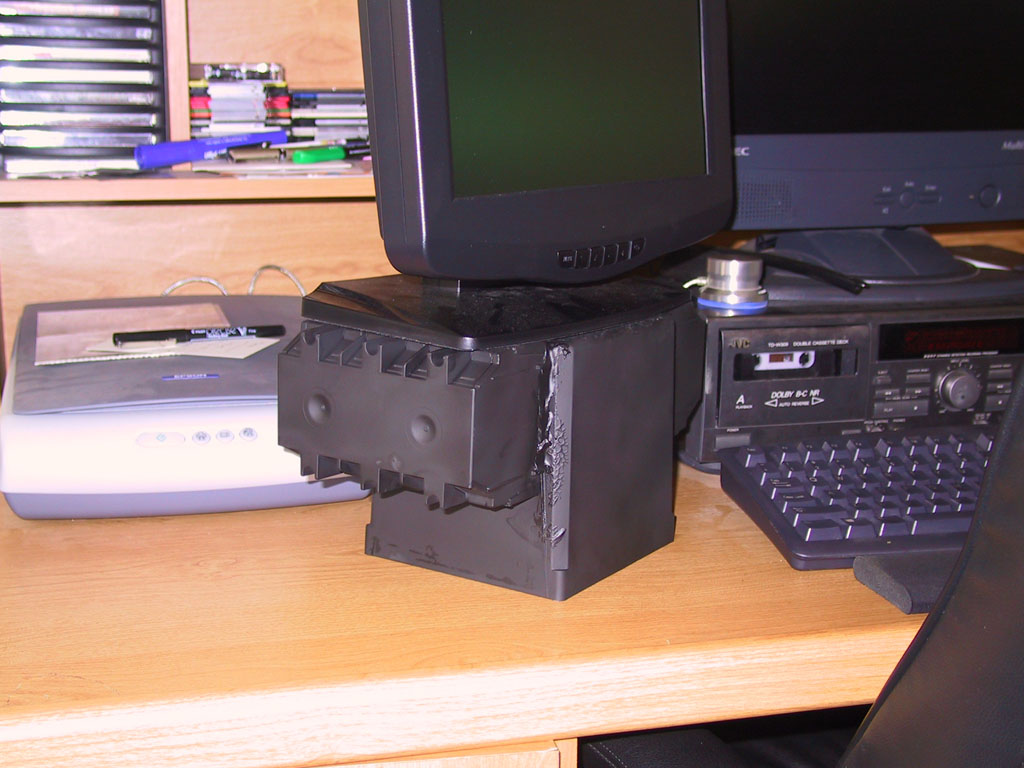

In use

Fan Pack
I have an external drive in a 3.5" box. It tends to get HOT!

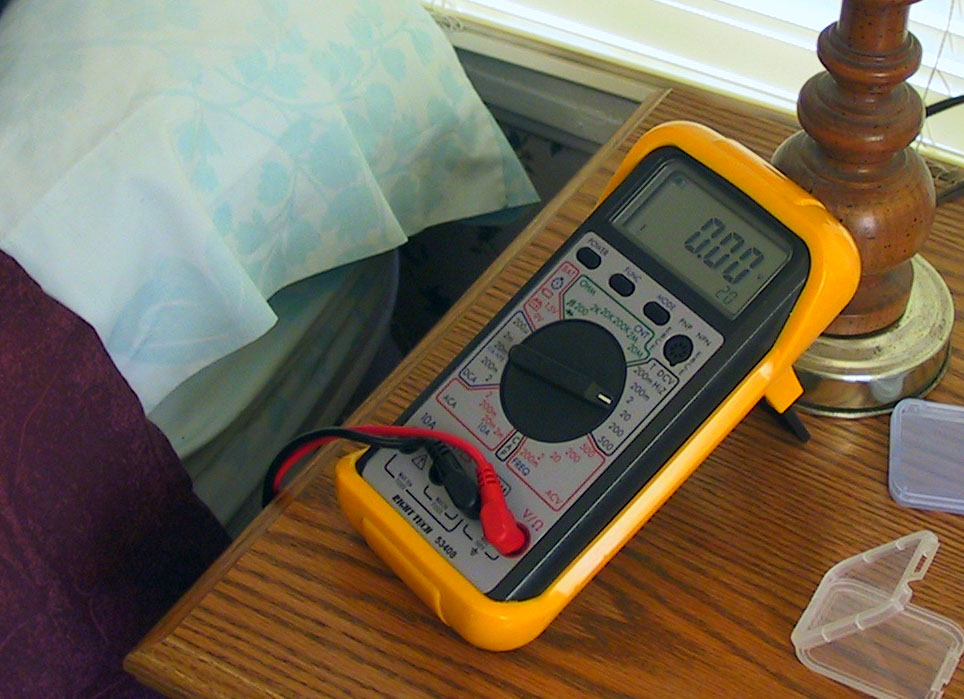

New fan Every geek should have one!
I was limited by a maxmimum size of 110mm
I also had to decide on 120VAC
or 12VDC fans.

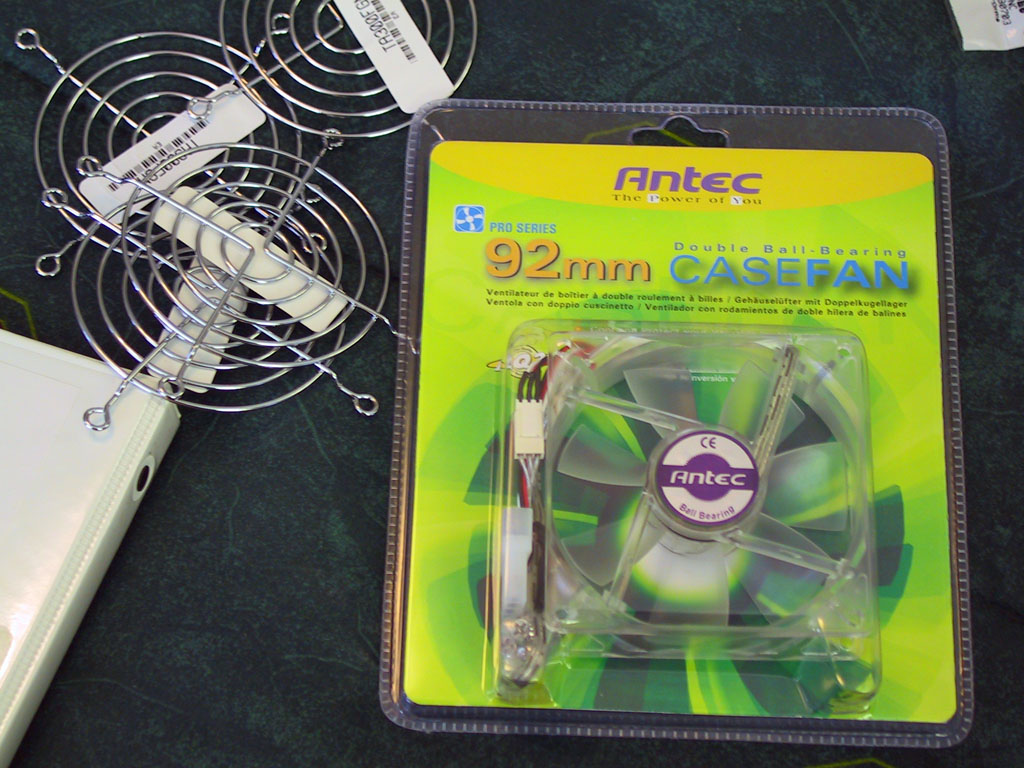

I used two Antec 92mm fans.
Note the four grills
I had to cut the molex plugs off and somehow connect the fans to a 12V transformer
The fans had 3 wires, so after I cut the plugs, I had to check the 2 wires to the motor
I also discovered my transformer was putting out 15V. hmmm.
Block Done! In use
I canibalized the 3-pin connectors
to use to disconnect the unit
I'm partial to barrier blocks for connecting

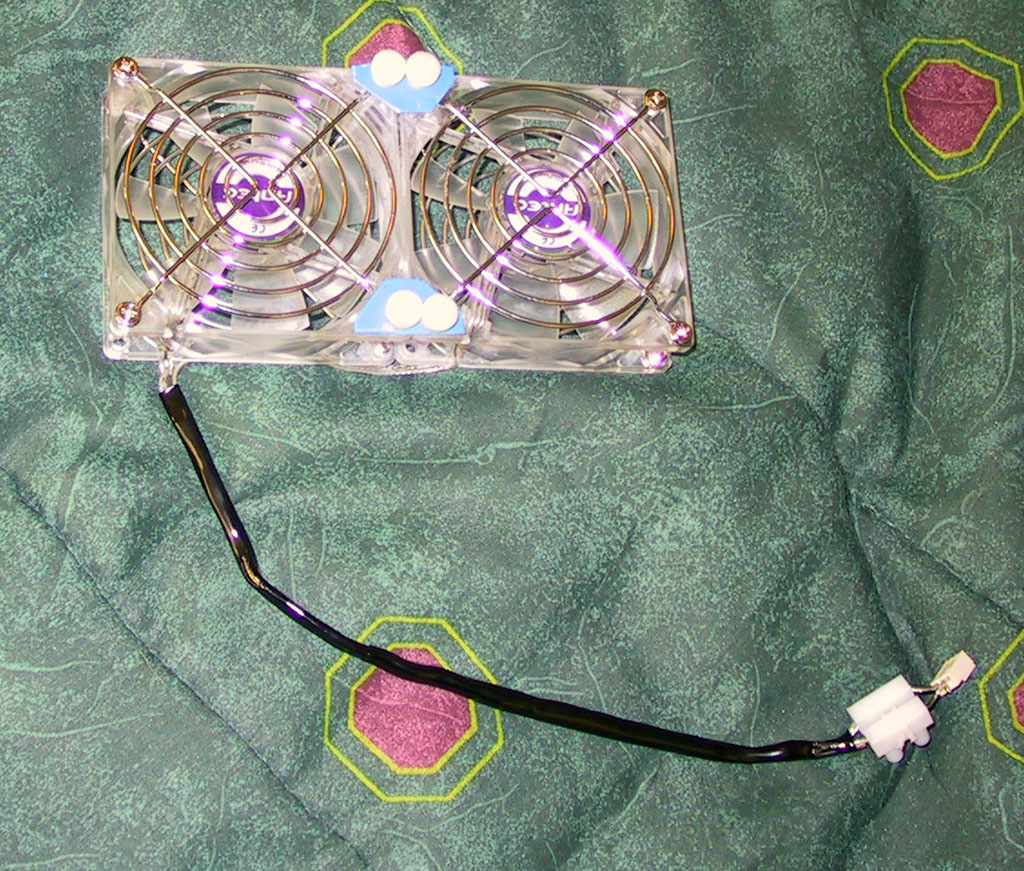

Add some shrink-wrap and we're done!
Not quite as pretty as it could be

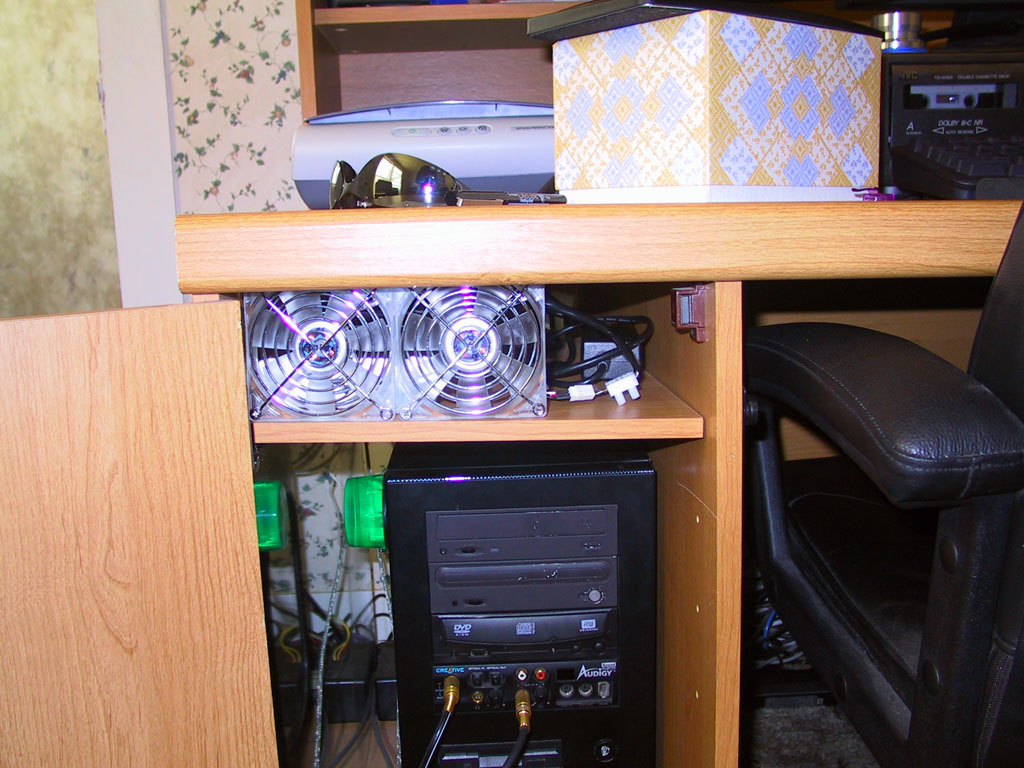

In use, cooling away!


Tim's PC at night
